Производитель: Tiandy

Описание:

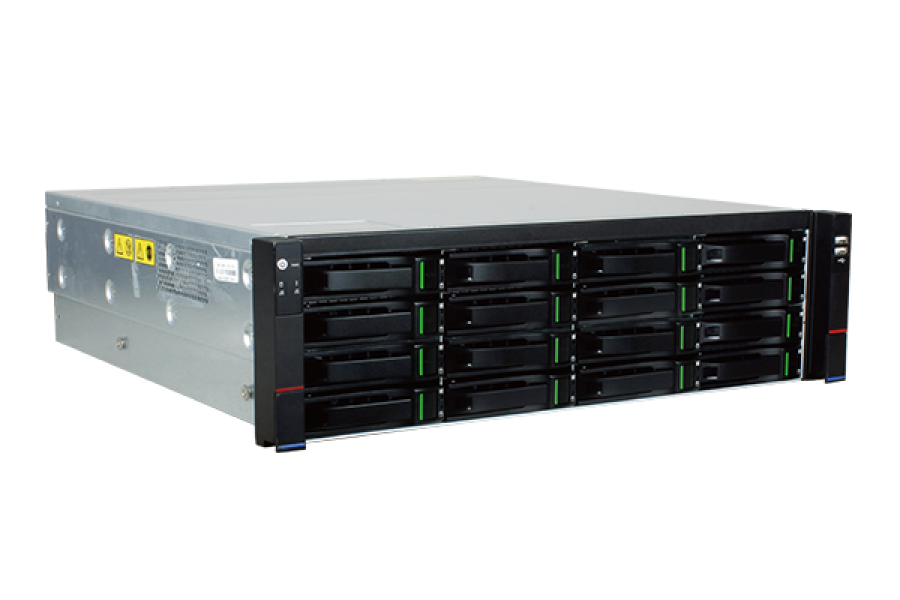

4K H.265 160 кан 16HDD HOT SWAP NVR



Особенности:

  • Входы для IP-камер: 160 каналов с разрешением 4K/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF;
  • Мониторинг в реальном времени: 4-канала с разрешением 4K/ 16 каналов 1080P/32 канала 720P/ 64 канала 4CIF;
  • 64 канальный субпоток (Sub-stream) c разрешением 4CIF для просмотра на мониторе в реальном времени;
  • Синхронное воспроизведение: 4-канала с разрешением 4K/16 каналов 1080P/720P/4CIF;
  • Запись с разрешением до 4К;
  • Пропускная способность вх/вых 400Mbps/200Mbps;
  • Поддержка JBOD, RAID0/1/5/6/10;
  • Квотирование жестких дисков и управление группами;
  • 160-канальная видеоаналитика;
  • Интеллектуальный Search & Recording, Plug & Play;
  • Поддержка AND функции;
  • Функция поддержки горячего резерва N + m;
  • 2x HDMI, 2x VGA (несколько источников видеосигнала c максимальным разрешение 4K);
  • 16 SATA(до 128TB);
  • Тревожный вх/ вых I/O 16/4, Audio I/O 1/2;
  • 3 x USB, 2хRJ45 (100/ 1000M)



Video/Audio Input
Video Input 160-ch
Audio Input 1-ch, 3.5mm
Network
Incoming Bandwidth 400Mbps
Outgoing Bandwidth 200Mbps
Remote Connection 32 Users, Up to 160ch Videos
Browser IE8,IE9,IE10,IE11,Firefox24
Mobile Software P2P&DDNS for IOS&Android (Tiandy: Easylive, Neutral: Mobilelive)
Internet Protocol TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/HTTPS/SADP/SNMP
Email Activated by Alarm
ANR Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera)
Advanced Remaining Bandwidth Display, Flow Monitor, Capture Package
Video/Audio Output
HDMI Output 2-ch Resolution:3840×2160,2560×1600?2560×1440?1920×1080?1280×720?
800×600,1024×768,1366×768,1440×900,1280×800
VGA Output 2-ch Resolution: 1920×1080?1280×720?800×600,1024×768?1366×768,1440×900,1280×800       Adjustable Output mode, Self-adaptive Resolution
Frame Rate Mainstream 25fps(P)/30fps(N)                                                                     Substream 25fps(P)/30fps(N)
I-Frame Record Y, Only Record Key Frame to Lower Frame Rate
Recording Resolution 4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 2-ch, 1-ch BNC(Linear Electrical Level, 600Ω) ,1-ch 3.5mm
Synchronous Playback 4-ch 4K/6MP/5-ch 5MP/8-ch 4MP/9-ch 3MP/16-ch 1080P/720P/4CIF
Decoding
Live View/Playback 4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 4-ch 4K/6MP/5-ch 5MP/8-ch 4MP/9-ch 3MP/16-ch 1080P/32-ch 720P/64-ch 4CIF
Display Split 1/4/6/8/9/10/16/20/25/36/40/64
E-Zoom Y
Hard Disk
SATA 16 SATA for 16 HDDs (Hot Swap)
eSATA Y, Only for Backup
Capacity Up to 8TB Capacity for Each HDD
NTFS Files System Y
HDD Management Group and Quota,Customized Recording Days
RAID
RAID Mode JBOD,RAID0,RAID1,RAID5,RAID6,RAID10 (>0?, Each Raid Group Supports up to 100Mbps Input)
Hot Backup Disk Overall and Raid Hot Backup Disk
RAID Management One-key Configuration, and Support Manual and Auto Rebuild
Redundant Recording Y, Support 200Mbps Input
External Interface
Network Interface 2 RJ-45 10/100/1000Mbps Self-adaptive Ethernet Interfaces
Serial Interface 2 RS-485, 1 RS-232
USB Interface 1x USB3.0, 2x USB2.0
Alarm In/Out  16/4
Advance
NAS NFS Protocol, Support Manual Backup Only
Plug and Play Y, Only for Tiandy Cameras
Image Flip Y, Only for Tiandy Cameras
Hot Standby N+M
Corridor Mode Y, 16:9 to 9:16, Only for Tiandy Cameras
Video Analytics(VCA) Support 160-ch Camera VCA Function,Including Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection
Smart Search Quickly Search Target Videos according to Channel No., Records Type, Records Time, File Type and VCA( Only for Tiandy Cameras )
Trigger Recording Manual/Timing/Motion Detection/Port Alarm/VCA/Video Occlusion
Smart Recording Set Different Recording Bite Rate for Different Time
Alarm Recording Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ).
One Key Control Intercom, Recording
Records Format SDV, Export MP4 in H.264 Format
Records Encryption Y
Records Tag Y
Onvif Onvif(Profile S)
General
Languge English, Spanish, Korean, Italian,Turkish,Thai, Russian, Traditional Chinese,Simplified Chinese, French, Polish
Power Supply 100 ~ 240V AC,  50 ~ 60Hz
Consumption(without HDD) ≤100W
Working Temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity 10 % ~ 90 %
Chassis 19'' Rack Mount 3U Chassis, with 2pcs Ear Boards
Dimensions 132mm×482.6mm×490mm
Weight ≤11Kg (without HDD)
