DX224

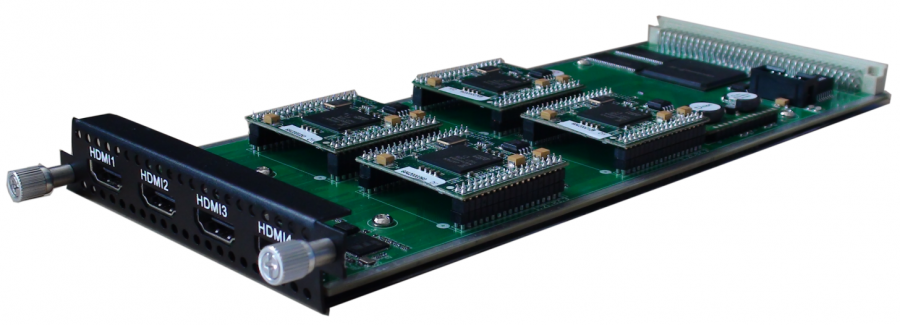

4 HDMI Encoding Module(DX224)
Module Specifications:
Input: 4*HDMI
Output: 1*MPTS & 4*SPTS output over UDP/RTP, Unicast/Multicast, SFP/RJ45
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution:
1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i,
1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i
GOP structure: IBBP
Video bitrate: 0.8Mbps~19Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 passthrough
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 64~320Kbps each channel
Audio Gain Control: 0-400%
