DG-DX308AT

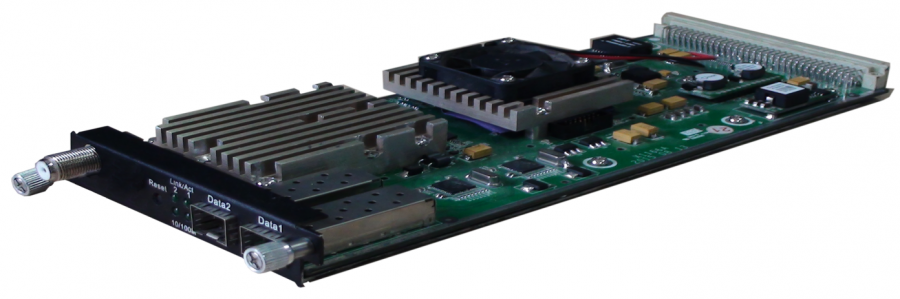

8 ATSC Modulating Module(DX308AT)
Module Specifications:
Data input: 128 IP input from front panel Data port
256 IP input over UDP/RTP, 2GE Ports (RJ45/SFP)
Data output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF Output (F type): 8 non-adjacent carrier outputs within 192M bandwidth
Multiplexing:
Channel Number: 8 multiplexing channels
Maximum PID Remapping: 180 input per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation: 8*ATSC
Standard: ATSC A/53 MER: ≥40db RF Frequency: 50~960MHz, 1KHz step
Constellation: 8VSB Bandwidth: 6MHz FEC: RS(208 188)+Trellis
RF Output Level: -20~+10dbm (for all carriers), 0.5db stepping
