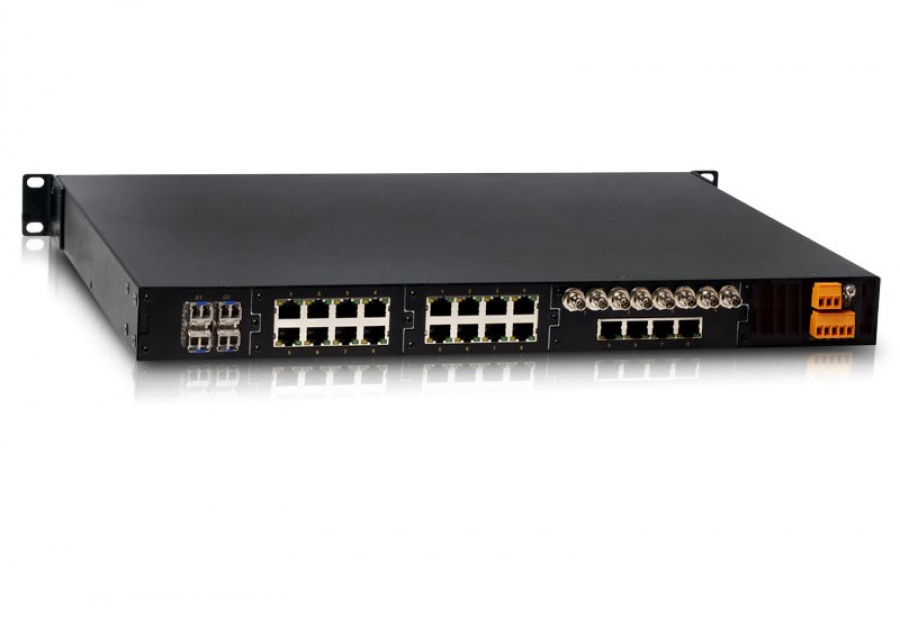

SICOM3024

Производитель: Kyland

Описание:

Коммутатор управляемый модульный Layer 2: 24+4G порта, IEC61850

SICOM 3024 - это высокопроизводительный промышленный управляемый коммутатор 2-го уровня. Прочный корпус, IP40, высокая эффективность, теплорассеивающая поверхность без вентилятора, защита от ЭМИ, скачков напряжения, а также отличная защита портов RJ45 позволяет устройству работать в наиболее жестких и опасных условиях окружающей среды. Технология резервирования связей DT-Ring, DT-Ring+, DT-VLAN, MSTP, независимый канал для управления сетью, резервирование по питанию и система полного контроля сети в реальном времени гарантирует надежность и гарантированную работоспособность. Данная модель является одним из наиболее востребуемых продуктов в данном сегменте т.к. имеет огромное кол-во конфигураций, мощный функционал и очень привлекательную цену!

Особенности:

  • Имеет 24/22/16 x 10/100Base-T(X) порта с разъемом RJ45, 8/6/4/2 x 100Base-FX  с разъёмами FC/SC/ST, 4/2 x 1000Base-X SFP слота;
  • Протоколы резервирования DT-Ring, MSTP;
  • Сигнализация при сбое питания;
  • Превышает требования IEC61850-3 и IEEE1613
  • Сертификаты CE, FCC
  • Рабочая температура: от -40 до 85°C

Возможности устройства:

  • Резервирование: протоколы DT-Ring (время восстановления < 50мс), DT-Ring+, DT-VLAN, MSTP;
  • Multicast Protocol:IGMP Snooping, GMRP и static multicast
  • Сегментация сетей: VLAN, PVLAN
  • Приоретизация: QoS
  • Управление пропускной способностью: группирование портов, ограничение скорости порта, контроль широковещательных штормов
  • Управление устройством: при помощи CLI (консоль), Telnet, по WEB-интерфейсу, либо с помощью ПО Kyvision, SNMPv1/v2, RMON, LLDP, SNTP, DHCP;
  • Безопасность сети: DT-Psec, SSH, SSL, ACL;
  • Обновление прошивки: по FTP;
  • Поддержка зеркалирование портов (port mirroring);
  • 1Сигнализация: обнаружение конфликта IP/MAC, при сбоях в питании, температуре, ошибках на портах и в кольце;
  • Специальные функции: Link Check и Loop Status Check



Стандарты

IEEE802.3i - Ethernet
IEEE802.3u - Fast Ethernet
IEEE802.3ab - 1000Base-T
IEEE802.3z - Gigabit Ethernet
IEEE802.3x - Контроль потока данных
IEEE802.1p - CoS
IEEE802.1Q - сети VLAN
IEEE802.1s - MSTP
Коммутационный режим: с буферизацией фреймов
Протоколы

DT-Ring, DT-Ring+, DT-VLAN, MSTP;
IGMP Snooping, GMRP;
VLAN, PVLAN;
Telnet, HTTP, HTTPS, SNMPv1/v2/v3, RMON, LLDP, SNTP, DHCP server;
DT-Psec, SSH, SSL, ACL;
FTP;
ARP, QoS
Производительность

Очередей приоритета: 4
Количество VLAN: 256
VLAN ID: 1-4094
Мультикаст групп: 256
Таблица MAC: 8K
Буфер пакетов: 2Mbit
Пропускная способность:  9.5Mpps
Задержки: <5μs
Интерфейсы

Gigabit Ethernet: 4 или 2 Гб порта (SFP)
Fast Ethernet: макс. 8 х 100Base-FX, SM/MM порта, (FC/SC/ST), 24 x 10/100Base-T(X) порта, (RJ45)
Максимум 24 x 100M оптический порта (одномод / многомод) с разъемами SC/ST/FC, либо 24 x 10/100Base-T(X) RJ45
Консольный порт: RS232 с разъемом RJ45
Сигнальный контакт: 3-pin 3.81mm-spacing plug-in terminal block, 250VAC/220VDC Max, 2A Max, 60W Max
Световая индикация

на передней панели:
- Работы устройства: Run
- Интерфейсы: Link/ACT (Fast Ethernet порт), Speed (Fast Ethernet порт), DPX (Gigabit Ethernet порт) , Link (Gigabit Ethernet порт)
на задней панели:
- Интерфейсы: Link/ACT
- Скорость: Speed
Дистанция передачи

Витая пара: 100м (CAT5, CAT5e)
Оптика многомод: 1310нм, 5км (100M), 850нм, 550м (1000M)
Оптика одномод: 1310нм, 40км/60км (100M), 1550нм, 60км/80км (100M)
1310нм, 10км/40км (1000M), 1550нм, 60км/80км (1000M)
Требования по питанию

Входное напряжение: 12VDC (9-18VDC), 24VDC (18-36VDC), 48VDC (36-72VDC), 220VAC/DC (85-264VAC/120-370VDC)
Контакт питания: 5-pin 5.08mm-spacing plug-in terminal block
Энергопотребление: < 21.6 Вт

Защита от перегрузки: Поддерживается
Автоматическое определение полярности: Поддерживается
Резервирование: Поддерживается
Физические характеристики

Корпус: Металл, без вентиляторов
Класс защиты: IP40
Габариты (ШxВxГ): 482.6×44×245мм
Вес: 3 кг
Монтаж: 19" стойка, 1U
Требования к окружающей среде

Рабочая температура: от -40 до 85°C
Температура для хранения: от -40 до 85°C
Относительная влажность: от 5 до 95% (без конденсации)
Наработка на отказ

318,296 ч.
Гарантия

5 лет
Сертификация

CE, FCC, ГОСТ-Р
Промышленные стандарты

EMI:
FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m (cont.), 1000A/m (1s-3s)
IEC61000-4-9 (Pulsed magnetic field): 1000A/m
IEC61000-4-10 (Damped oscillation): 100A/m
IEC61000-4-12 (Oscillatory wave): 2.5kV/CM, 1kV/DM
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

Industry: IEC61000-6-2
Power: IEC61850-3, IEEE1613
Railway: EN50155, EN50121-4
Traffic Control: NEMA TS-2
SAP код Артикул Описание
300170505 SICOM3024-24T-HV 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170506 SICOM3024-24T-HV-HV 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170010 SICOM3024-24T-L1 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170720 SICOM3024-24T-L1-L1 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170011 SICOM3024-24T-L3 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170721 SICOM3024-24T-L3-L3 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170527 SICOM3024-2M22T-FC05-HV 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170535 SICOM3024-2M22T-FC05-HV-HV 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170137 SICOM3024-2M22T-FC05-L1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170708 SICOM3024-2M22T-FC05-L1-L1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170145 SICOM3024-2M22T-FC05-L3 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170716 SICOM3024-2M22T-FC05-L3-L3 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170526 SICOM3024-2M22T-SC05-HV 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170534 SICOM3024-2M22T-SC05-HV-HV 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170136 SICOM3024-2M22T-SC05-L1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170707 SICOM3024-2M22T-SC05-L1-L1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170144 SICOM3024-2M22T-SC05-L3 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170715 SICOM3024-2M22T-SC05-L3-L3 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170528 SICOM3024-2M22T-ST05-HV 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170536 SICOM3024-2M22T-ST05-HV-HV 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170138 SICOM3024-2M22T-ST05-L1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170709 SICOM3024-2M22T-ST05-L1-L1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170146 SICOM3024-2M22T-ST05-L3 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170717 SICOM3024-2M22T-ST05-L3-L3 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180110 SICOM3024-2M24T-FC05-HV 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180119 SICOM3024-2M24T-FC05-HV-HV 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180035 SICOM3024-2M24T-FC05-L1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180161 SICOM3024-2M24T-FC05-L1-L1 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180043 SICOM3024-2M24T-FC05-L3 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180169 SICOM3024-2M24T-FC05-L3-L3 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180109 SICOM3024-2M24T-SC05-HV 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180118 SICOM3024-2M24T-SC05-HV-HV 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180034 SICOM3024-2M24T-SC05-L1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180160 SICOM3024-2M24T-SC05-L1-L1 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180042 SICOM3024-2M24T-SC05-L3 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180168 SICOM3024-2M24T-SC05-L3-L3 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180111 SICOM3024-2M24T-ST05-HV 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180117 SICOM3024-2M24T-ST05-HV-HV 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180036 SICOM3024-2M24T-ST05-L1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180162 SICOM3024-2M24T-ST05-L1-L1 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180044 SICOM3024-2M24T-ST05-L3 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180170 SICOM3024-2M24T-ST05-L3-L3 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170524 SICOM3024-2S22T-FC40-HV 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170532 SICOM3024-2S22T-FC40-HV-HV 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170134 SICOM3024-2S22T-FC40-L1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170705 SICOM3024-2S22T-FC40-L1-L1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170142 SICOM3024-2S22T-FC40-L3 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170713 SICOM3024-2S22T-FC40-L3-L3 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170523 SICOM3024-2S22T-SC40-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170531 SICOM3024-2S22T-SC40-HV-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170133 SICOM3024-2S22T-SC40-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170704 SICOM3024-2S22T-SC40-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170141 SICOM3024-2S22T-SC40-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170712 SICOM3024-2S22T-SC40-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170529 SICOM3024-2S22T-SC60-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170537 SICOM3024-2S22T-SC60-HV-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170139 SICOM3024-2S22T-SC60-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170710 SICOM3024-2S22T-SC60-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170147 SICOM3024-2S22T-SC60-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170718 SICOM3024-2S22T-SC60-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170530 SICOM3024-2S22T-SC80-HV 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170538 SICOM3024-2S22T-SC80-HV-HV 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170140 SICOM3024-2S22T-SC80-L1 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170711 SICOM3024-2S22T-SC80-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170148 SICOM3024-2S22T-SC80-L3 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170719 SICOM3024-2S22T-SC80-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300170525 SICOM3024-2S22T-ST40-HV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300170533 SICOM3024-2S22T-ST40-HV-HV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300170135 SICOM3024-2S22T-ST40-L1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300170706 SICOM3024-2S22T-ST40-L1-L1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300170143 SICOM3024-2S22T-ST40-L3 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300170714 SICOM3024-2S22T-ST40-L3-L3 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180107 SICOM3024-2S24T-FC40-HV 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180115 SICOM3024-2S24T-FC40-HV-HV 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180032 SICOM3024-2S24T-FC40-L1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180158 SICOM3024-2S24T-FC40-L1-L1 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180040 SICOM3024-2S24T-FC40-L3 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180166 SICOM3024-2S24T-FC40-L3-L3 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180106 SICOM3024-2S24T-SC40-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180114 SICOM3024-2S24T-SC40-HV-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180031 SICOM3024-2S24T-SC40-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180157 SICOM3024-2S24T-SC40-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180039 SICOM3024-2S24T-SC40-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180165 SICOM3024-2S24T-SC40-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180112 SICOM3024-2S24T-SC60-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180120 SICOM3024-2S24T-SC60-HV-HV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180037 SICOM3024-2S24T-SC60-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180163 SICOM3024-2S24T-SC60-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180045 SICOM3024-2S24T-SC60-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180171 SICOM3024-2S24T-SC60-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180113 SICOM3024-2S24T-SC80-HV 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180121 SICOM3024-2S24T-SC80-HV-HV 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180038 SICOM3024-2S24T-SC80-L1 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180164 SICOM3024-2S24T-SC80-L1-L1 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180046 SICOM3024-2S24T-SC80-L3 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180172 SICOM3024-2S24T-SC80-L3-L3 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300180108 SICOM3024-2S24T-ST40-HV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300180116 SICOM3024-2S24T-ST40-HV-HV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300180033 SICOM3024-2S24T-ST40-L1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300180159 SICOM3024-2S24T-ST40-L1-L1 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300180041 SICOM3024-2S24T-ST40-L3 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300180167 SICOM3024-2S24T-ST40-L3-L3 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171402 SICOM3024-4GX16T-HV 4 1000Base-X SFP ports, 16 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171403 SICOM3024-4GX16T-HV-HV 4 1000Base-X SFP ports, 16 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171400 SICOM3024-4GX16T-L1 4 1000Base-X SFP ports, 16 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171401 SICOM3024-4GX16T-L1-L1 4 1000Base-X SFP ports, 16 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171398 SICOM3024-4GX16T-L3 4 1000Base-X SFP ports, 16 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171399 SICOM3024-4GX16T-L3-L3 4 1000Base-X SFP ports, 16 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171197 SICOM3024-4GX24T-HV 4 1000Base-X SFP ports, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171198 SICOM3024-4GX24T-HV-HV 4 1000Base-X SFP ports, 24 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171195 SICOM3024-4GX24T-L1 4 1000Base-X SFP ports, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171196 SICOM3024-4GX24T-L1-L1 4 1000Base-X SFP ports, 24 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171193 SICOM3024-4GX24T-L3 4 1000Base-X SFP ports, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171194 SICOM3024-4GX24T-L3-L3 4 1000Base-X SFP ports, 24 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171181 SICOM3024-4GX2M22T-FC05-HV 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171189 SICOM3024-4GX2M22T-FC05-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171165 SICOM3024-4GX2M22T-FC05-L1 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171173 SICOM3024-4GX2M22T-FC05-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171149 SICOM3024-4GX2M22T-FC05-L3 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171157 SICOM3024-4GX2M22T-FC05-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171180 SICOM3024-4GX2M22T-SC05-HV 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171188 SICOM3024-4GX2M22T-SC05-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171164 SICOM3024-4GX2M22T-SC05-L1 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171172 SICOM3024-4GX2M22T-SC05-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171148 SICOM3024-4GX2M22T-SC05-L3 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171156 SICOM3024-4GX2M22T-SC05-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171182 SICOM3024-4GX2M22T-ST05-HV 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171190 SICOM3024-4GX2M22T-ST05-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171166 SICOM3024-4GX2M22T-ST05-L1 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171174 SICOM3024-4GX2M22T-ST05-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171150 SICOM3024-4GX2M22T-ST05-L3 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171158 SICOM3024-4GX2M22T-ST05-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171178 SICOM3024-4GX2S22T-FC40-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171186 SICOM3024-4GX2S22T-FC40-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171162 SICOM3024-4GX2S22T-FC40-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171170 SICOM3024-4GX2S22T-FC40-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171146 SICOM3024-4GX2S22T-FC40-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171154 SICOM3024-4GX2S22T-FC40-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171177 SICOM3024-4GX2S22T-SC40-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171185 SICOM3024-4GX2S22T-SC40-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171161 SICOM3024-4GX2S22T-SC40-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171169 SICOM3024-4GX2S22T-SC40-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171145 SICOM3024-4GX2S22T-SC40-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171153 SICOM3024-4GX2S22T-SC40-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171183 SICOM3024-4GX2S22T-SC60-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171191 SICOM3024-4GX2S22T-SC60-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171167 SICOM3024-4GX2S22T-SC60-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171175 SICOM3024-4GX2S22T-SC60-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171151 SICOM3024-4GX2S22T-SC60-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171159 SICOM3024-4GX2S22T-SC60-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171184 SICOM3024-4GX2S22T-SC80-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171192 SICOM3024-4GX2S22T-SC80-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171168 SICOM3024-4GX2S22T-SC80-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171176 SICOM3024-4GX2S22T-SC80-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171152 SICOM3024-4GX2S22T-SC80-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171160 SICOM3024-4GX2S22T-SC80-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171179 SICOM3024-4GX2S22T-ST40-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171187 SICOM3024-4GX2S22T-ST40-HV-HV 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171163 SICOM3024-4GX2S22T-ST40-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171171 SICOM3024-4GX2S22T-ST40-L1-L1 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171147 SICOM3024-4GX2S22T-ST40-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171155 SICOM3024-4GX2S22T-ST40-L3-L3 4 1000Base-X SFP ports, 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 22 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171133 SICOM3024-4GX4M20T-FC05-HV 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171141 SICOM3024-4GX4M20T-FC05-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171117 SICOM3024-4GX4M20T-FC05-L1 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171125 SICOM3024-4GX4M20T-FC05-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171101 SICOM3024-4GX4M20T-FC05-L3 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171109 SICOM3024-4GX4M20T-FC05-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171132 SICOM3024-4GX4M20T-SC05-HV 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171140 SICOM3024-4GX4M20T-SC05-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171116 SICOM3024-4GX4M20T-SC05-L1 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171124 SICOM3024-4GX4M20T-SC05-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171100 SICOM3024-4GX4M20T-SC05-L3 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171108 SICOM3024-4GX4M20T-SC05-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171134 SICOM3024-4GX4M20T-ST05-HV 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171142 SICOM3024-4GX4M20T-ST05-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171118 SICOM3024-4GX4M20T-ST05-L1 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171126 SICOM3024-4GX4M20T-ST05-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171102 SICOM3024-4GX4M20T-ST05-L3 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171110 SICOM3024-4GX4M20T-ST05-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171130 SICOM3024-4GX4S20T-FC40-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171138 SICOM3024-4GX4S20T-FC40-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171114 SICOM3024-4GX4S20T-FC40-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171122 SICOM3024-4GX4S20T-FC40-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171098 SICOM3024-4GX4S20T-FC40-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171106 SICOM3024-4GX4S20T-FC40-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171129 SICOM3024-4GX4S20T-SC40-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171137 SICOM3024-4GX4S20T-SC40-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171113 SICOM3024-4GX4S20T-SC40-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171121 SICOM3024-4GX4S20T-SC40-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171097 SICOM3024-4GX4S20T-SC40-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171105 SICOM3024-4GX4S20T-SC40-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171135 SICOM3024-4GX4S20T-SC60-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171143 SICOM3024-4GX4S20T-SC60-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171119 SICOM3024-4GX4S20T-SC60-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171127 SICOM3024-4GX4S20T-SC60-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171103 SICOM3024-4GX4S20T-SC60-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171111 SICOM3024-4GX4S20T-SC60-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171136 SICOM3024-4GX4S20T-SC80-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171144 SICOM3024-4GX4S20T-SC80-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171120 SICOM3024-4GX4S20T-SC80-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171128 SICOM3024-4GX4S20T-SC80-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171104 SICOM3024-4GX4S20T-SC80-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171112 SICOM3024-4GX4S20T-SC80-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, SC connector, 1550nm, 80km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171131 SICOM3024-4GX4S20T-ST40-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171139 SICOM3024-4GX4S20T-ST40-HV-HV 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171115 SICOM3024-4GX4S20T-ST40-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171123 SICOM3024-4GX4S20T-ST40-L1-L1 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171099 SICOM3024-4GX4S20T-ST40-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171107 SICOM3024-4GX4S20T-ST40-L3-L3 4 1000Base-X SFP ports, 4 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 20 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171085 SICOM3024-4GX6M18T-FC05-HV 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171093 SICOM3024-4GX6M18T-FC05-HV-HV 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171069 SICOM3024-4GX6M18T-FC05-L1 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171077 SICOM3024-4GX6M18T-FC05-L1-L1 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171053 SICOM3024-4GX6M18T-FC05-L3 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171061 SICOM3024-4GX6M18T-FC05-L3-L3 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, FC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171084 SICOM3024-4GX6M18T-SC05-HV 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171092 SICOM3024-4GX6M18T-SC05-HV-HV 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171068 SICOM3024-4GX6M18T-SC05-L1 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171076 SICOM3024-4GX6M18T-SC05-L1-L1 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171052 SICOM3024-4GX6M18T-SC05-L3 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171060 SICOM3024-4GX6M18T-SC05-L3-L3 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171086 SICOM3024-4GX6M18T-ST05-HV 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171094 SICOM3024-4GX6M18T-ST05-HV-HV 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171070 SICOM3024-4GX6M18T-ST05-L1 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171078 SICOM3024-4GX6M18T-ST05-L1-L1 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171054 SICOM3024-4GX6M18T-ST05-L3 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171062 SICOM3024-4GX6M18T-ST05-L3-L3 4 1000Base-X SFP ports, 6 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171082 SICOM3024-4GX6S18T-FC40-HV 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171090 SICOM3024-4GX6S18T-FC40-HV-HV 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171066 SICOM3024-4GX6S18T-FC40-L1 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171074 SICOM3024-4GX6S18T-FC40-L1-L1 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171050 SICOM3024-4GX6S18T-FC40-L3 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171058 SICOM3024-4GX6S18T-FC40-L3-L3 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, FC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171081 SICOM3024-4GX6S18T-SC40-HV 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171089 SICOM3024-4GX6S18T-SC40-HV-HV 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) dual redundant power supplies
300171065 SICOM3024-4GX6S18T-SC40-L1 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) single power supply
300171406 SICOM3024-4GX6S18T-SC40-L1-L1 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 48VDC(36-72VDC) dual redundant power supplies
300171049 SICOM3024-4GX6S18T-SC40-L3 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) single power supply
300171057 SICOM3024-4GX6S18T-SC40-L3-L3 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 18 10/100Base-TX RJ45 ports, 24VDC(18-36VDC) dual redundant power supplies
300171087 SICOM3024-4GX6S18T-SC60-HV 4 1000Base-X SFP ports, 6 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 18 10/100Base-TX RJ45 ports, 100-240VAC/110-220VDC(85-264VAC/77-300VDC) single power supply
300171095 SICOM3024-4GX6S18T-SC60-HV-HV 4 10
