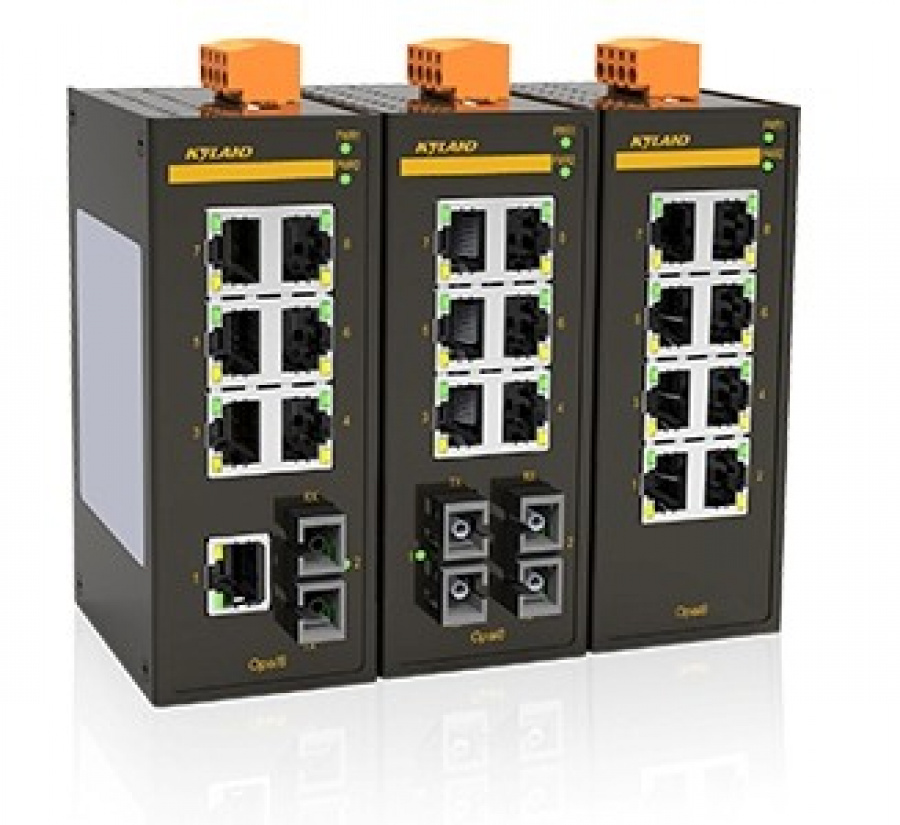

Opal8

Производитель: Kyland

Описание:

Неуправляемый 8-ми портовый коммутатор (сертификат ATEX II) на DIN-Rail: 8 x 100M оптика/медь



Серия поддерживает IEEE 802.3i, IEEE802.3u  с автоматическим определением скорости передачи 10/100M full/half-duplex, MDI/MDI-X. Входное напряжение: 9-60VDC/9-40VAC. Коммутаторы были специально разработаны для тяжелых промышленных условий, определяемые стандартами UL508 и UL Class 1 Div 2 и ATEX II.

Особенности:

  • Бюджетные коммутаторы начального уровня;
  • При полной нагрузке потребляет 2,64 Вт;
  • 8 портов 100M оптика/медь либо 1 оптический порт S/M-7T либо 2 оптических порта S/M-6T;
  • Поддержка Auto-Sensing, Auto-Negotiation, Auto-Crossing
  • Компактный корпус на DIN-Rail;
  • Uplink порты поддерживают контроль широковещательных штормов (устанавливается с помощью микропереключателя);
  • Высокая электромагнитная защищенность (уровень 3);
  • Класс защиты IP30;
  • Два варианта исполнения (-10 до 60?C) и (-40 до 75?C)
  • Сертификаты UL508, UL Class 1 Div 2, CE, FCC, ATEX II
Стандарты

IEEE802.3i - Ethernet
IEEE802.3u - Fast Ethernet
IEEE802.3x - Контроль потока данных
Производительность

MAC table: 2K
Packet Buffer: 1Mbit
Packet Forwarding Rate: 0.8Mpps
Switching Delay: <5μs
Интерфейсы

Fast Ethernet Fiber Ports: 1 or 2 100Base-FX, SM/MM ports, SC/ST connector
Fast Ethernet RJ45 Ports: max 8 10/100Base-TX RJ45 ports
Световая индикация

LEDs on Front Panel:
Power LED: PWR1, PWR2
Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT(fiber port)
Дистаннция передачи

Twisted Pair:
100m (Standard CAT5, CAT5e network cable)
Multi Mode Fiber:
1310nm, 5km (100M)
Single Mode Fiber:
1310nm, 40km (100M)
Требование по питанию

Power Input:
9-60VDC/9-40VAC
Power Terminal:
4-pin 5.08mm-spacing plug-in terminal block
Power Consumption:
Full load 2.64w, standby 1.7w

Overload Protection: Support
Reverse Connection Protection: Support
Redundancy Protection: Support
Физические характеристики

Корпус: Металл
Класс защиты: IP30
Габариты (W×H×D):46×115×68 mm (1.81×4.53×2.68 in.)
Масса (нетто): 0.320 кг.
Монтаж: DIN-Rail
Требования к окружающей среде

Рабочая температура:
Стандартный диапазон (артикул с Е): -10 дo 60°C (14 дo 140°F)
Расширенный диапазон: -40 дo 75°C (-40 дo 167°F)
Температура хранения: -40 дo 85°C (-40 дo 185°F)
Влажность: 5 дo 95% (без конденсации)
Наработка на отказ

361,000 часов
Гарантия

5 лет
Соответствие

UL508 (pending), Class 1 Div 2 (pending), ATEX II (pending), CE, FCC
Промышленные стандарты

EMI:
FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS:
IEC61000-4-2 (ESD): ±6kV (contact), ±8kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±2kV; Data Port: ±1kV
IEC61000-4-5 (Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±1kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

Industry: IEC61000-6-2
Railway: EN50155, EN50121-4
Industry: IEC61000-6-2

Модели

Артикул Описание
Opal8-8T-LV-LV 8 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1M7T-SC05-LV-LV 1 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1M7T-ST05-LV-LV 1 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1S7T-SC40-LV-LV 1 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1S7T-ST40-LV-LV 1 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1S7T-SC60-LV-LV 1 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1S7T-ST60-LV-LV 1 100Base-FX single mode fiber ports, ST connector, 1310nm, 60km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1S7T-SC80-LV-LV 1 100Base-FX single mode fiber ports, SC connector, 1310nm, 80km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-1S7T-ST80-LV-LV 1 100Base-FX single mode fiber ports, ST connector, 1310nm, 80km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2M6T-SC05-LV-LV 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2M6T-ST05-LV-LV 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2S6T-SC40-LV-LV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2S6T-ST40-LV-LV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2S6T-SC60-LV-LV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2S6T-ST60-LV-LV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 60km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2S6T-SC80-LV-LV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 80km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-2S6T-ST80-LV-LV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 80km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -40 to 75?C operating temperature
Opal8-E-8T-LV-LV 8 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1M7T-SC05-LV-LV 1 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1M7T-ST05-LV-LV 1 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1S7T-SC40-LV-LV 1 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1S7T-ST40-LV-LV 1 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1S7T-SC60-LV-LV 1 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1S7T-ST60-LV-LV 1 100Base-FX single mode fiber ports, ST connector, 1310nm, 60km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1S7T-SC80-LV-LV 1 100Base-FX single mode fiber ports, SC connector, 1310nm, 80km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-1S7T-ST80-LV-LV 1 100Base-FX single mode fiber ports, ST connector, 1310nm, 80km, 7 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2M6T-SC05-LV-LV 2 100Base-FX multi mode fiber ports, SC connector, 1310nm, 5km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2M6T-ST05-LV-LV 2 100Base-FX multi mode fiber ports, ST connector, 1310nm, 5km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2S6T-SC40-LV-LV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 40km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2S6T-ST40-LV-LV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 40km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2S6T-SC60-LV-LV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 60km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2S6T-ST60-LV-LV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 80km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2S6T-SC80-LV-LV 2 100Base-FX single mode fiber ports, SC connector, 1310nm, 80km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
Opal8-E-2S6T-ST80-LV-LV 2 100Base-FX single mode fiber ports, ST connector, 1310nm, 80km, 6 10/100Base-TX ports, 9-60VDC dual redundant power inputs, -10 to 60?C operating temperature
